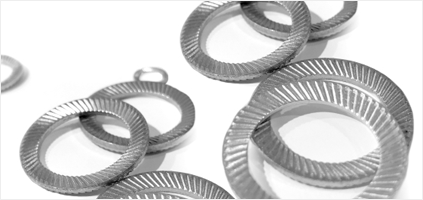

사이즈
S TYPE : M1.6 ~ M36 / VS TYPE : M5 ~ M30



재질
STEEL, SUS

특징

- 진동과 충격에 우수
- 저렴한 가격으로 경제적 절감효과 상승
- 상, 하단의 톱니모양으로 마찰력 발생 증가
- 동심 체결로 인한 볼트 파손이 없음


회오리와셔 사양

일반용 "s" 시리즈 Steel C60S(1.1211) & Stainless material X5CrNi18-10 (1.4301)

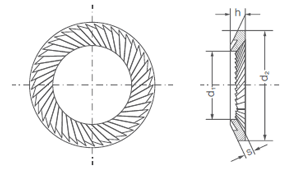

BOLT SIZE d1 h14 [mm] d2 h14 [mm] S [mm] h max [mm] h min [mm] Packing [pcs/box]
mm inch Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless
1.6   1.7 1.7 3.2 3.2 0.35 0.5 0.6 0.55 0.38 0.75 2000 1000
2   2.2 2.2 4 4 0.35 0.5 0.6 0.55 0.39 0.75 2000 2000
2.5   2.7 2.7 4.8 4.8 0.45 0.5 0.9 0.55 0.49 0.95 2000 2000
3 1/8 3.2 3.2 5.5 5.5 0.45 0.5 0.9 0.55 0.51 0.95 2000 2000
3.5   3.7 3.7 6 6 0.45 0.7 0.9 0.75 0.52 1.15 2000 2000
4 5/32 4.3 4.3 7 7 0.5 0.7 1.0 0.75 0.59 1.20 1000 1000
5 3/16 5.3 5.3 9 9 0.6 0.7 1.1 0.75 0.73 1.20 1000 1000
6   6.4 6.4 10 10.0 0.7 0.7 1.2 0.75 0.82 1.20 1000 1000
6.35 1/4 6.7 6.7 9.5 95 0.7 0.7 1.2 0.75 0.79 1.20 1000 1000
7   7.4   12   0.7   1.3   0.89   1000
8 5/16 8.4 8.4 13 13.0 0.8 1.0 1.4 1.20 0.98 1.60 1000 1000
10 3/8 10.5 10.5 16 16.0 1 1.0 1.6 1.10 1.21 1.60 1000 1000
11.1 7/16 11.6 11.6 15.9 15.9 1 1.3 1.61.30 1.18 1.85500 500
12   13 13.0 18 18.0 1.1 1.3 1.71.30 1.31 1.85500 500
12.7 1/2 13.7 13.7 19 19.0 1.1 1.3 1.8 1.40 1.33 195 500 500
14 9/16 15 15.0 22 22.0 1.2 1.5 2.0 1.65 1.52 2.30 500 500
16 5/8 17 17.0 24 24.0 1.3 1.5 2.1 1.75 1.63 2.30 500 500
18   19 19.0 27 27.0 1.5 1.8 2.3 2.05 1.85 2.60 250 250
19 3/4 20 20.0 30 30.0 1.5 1.8 2.5 2.20 1.98 2.60 250 250
20   21 21.0 30 30.0 1.5 1.8 2.5 2.15 1.94 2.80 250 250
22 7/8 23 23.0 33 33.0 1.5 1.8 2.72.30 2.08 3.00100 100
24   25.6 25.6 36 36.0 1.8 2.0 2.9 2.35 2.32 3.10 100 100
25.4 1 27 27.0 38 37.0 2 2.5 3.1 2.85 2.52 3.60 100 100
27   28.6 286 39 39.0 2 2.5 3.1 2.85 2.52 3.60 100 100
30 1 1/8 ″ 31.6 31.6 45 45.0 2 2.5 3.63.10 2.78 4.10100 100
36 1 3/8″ 38 38.0 54 54.0 2.5 3.0 4.2 3.70 3.38 4.70 50 100
* The surface hardness, according to ISO 898-1, indicated in Vickers.


고하중용 "VS" 시리즈 material C60S (1.1211)

mm inch H14 h14   max min kg/1000 pcs/box
5 3/16″ 5.3 9 1 1.3 1.07 0.273 1000
6   6.4 10 1 1.4 1.08 0.300 1000
8 5/16″ 8.4 13 1.2 1.7 1.32 0.615 1000
10 3/8″ 10.5 16 1.5 2 1.64 1.167 1000
12   13 18 1.5 2.1 1.65 1.223 500
14 9/16″ 15 22 1.5 2.2 1.76 2.089 500
16 5/8″ 17 24 2 2.6 2.21 3.142 250
18   19 27 2 2.7 2.27 4.041 250
20   21 30 2 2.8 2.34 5.066 250
22 7/8″ 23 33 2 3.0 2.42 6.117 100
24   25.6 36 2.5 3.4 2.87 8.865 100
27   28.6 39 2.5 3.5 2.91 9.731 100
30 1 1/8 ″ 31.6 45 2.5 3.8 3.12 14.38 100
*DTR 00212542XX
